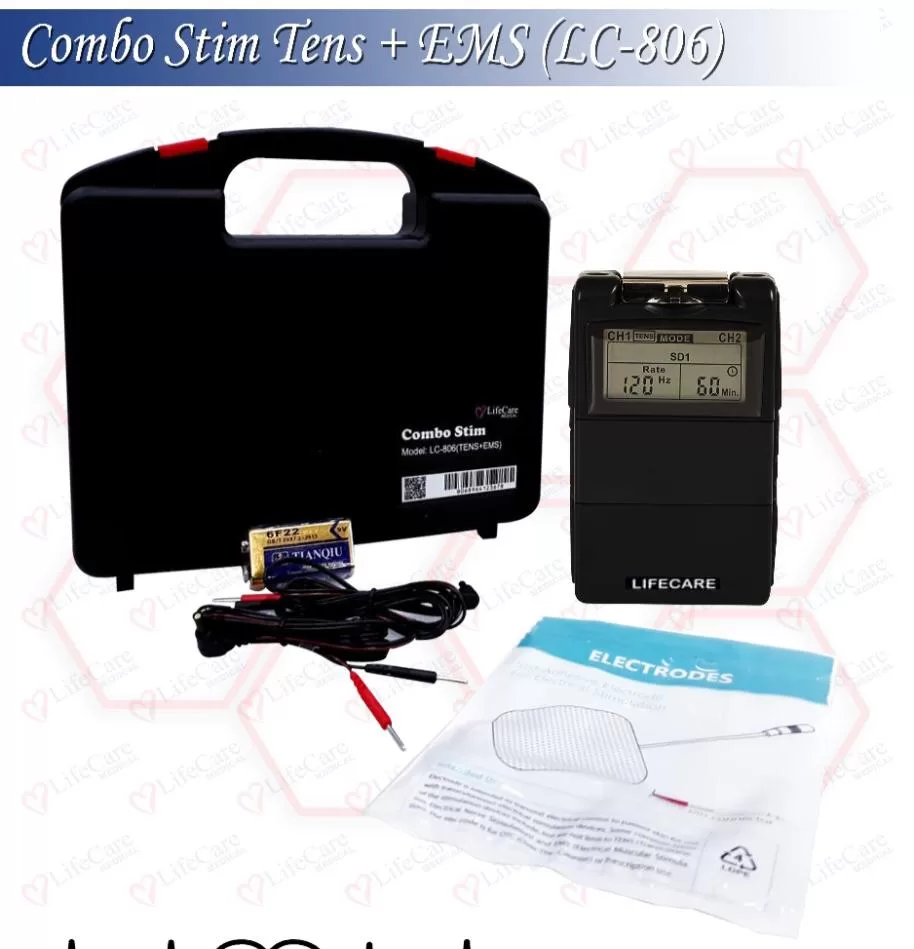

LC-806 TENS & EMS Machine
The LC-806 TENS & EMS Machine is a professional dual-therapy device designed for pain relief and muscle stimulation. It offers multiple adjustable settings, allowing users to customize treatment according to their needs. The large LCD screen clearly displays whether the device is operating in TENS or EMS mode.
Key Specifications
Pulse Amplitude: Adjustable 0–100 mA peak into 500 ohm load
Waveform: Asymmetrical Bi-Phasic Square Pulse
Size: 10.1 × 6.1 × 2.45 cm
Weight: 150 grams (with battery)
Output Type: TENS & EMS
TENS Functions
Modes: B, N, M, SD1, SD2
Pulse Rate: 2–150 Hz (adjustable)
Pulse Width: 50–300 µs (adjustable)
Timer: 5–60 minutes or continuous
EMS Functions
Modes: S (Synchronous), A (Alternate)
Ramp Time: 1–8 seconds
On Time: 2–90 seconds
Off Time: 2–90 seconds
Pulse Rate: 2–150 Hz
Pulse Width: 50–300 µs
Timer: 5–60 minutes or continuous
Features
Flip-top protective cover
5 TENS modes & 2 EMS modes
Large LCD display with clear readings
Easy press-button controls
Stores last used settings
Patient compliance meter up to 999 hours
Treatment time countdown
Low battery indicator
Durable stainless steel belt clip
